Odometer / Mileage Reset (reads 99999.9)

It is the end of the line for my shogun 125cc odometer reading which reads 99999.9 and it is been two weeks from now that it was stuck at that reading, and the only way to revert it back to zero is by injecting a new odometer data on its eeprom by using an eeprom programmer and a corresponding software plus an odometer value calculator that will convert any decimal value to hexadecimal that will be manually type to the specific eeprom address on the software window.

Years back, i posted this kind of panel,

what's inside on this link
Speedometer Panel

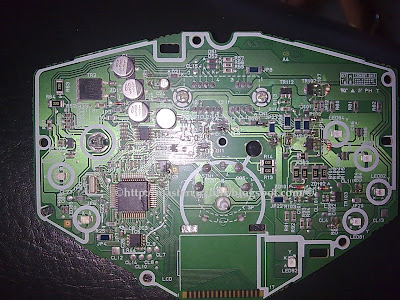

looking inside the panel will expose of course the entire board of the speedometer. This is digital and care must be consider handling this to prevent problems later on due to static electricity.

moving on

what we are eyeing is the IC with mark IC5 written on the board, that is the eeprom that store value for the odometer reading.
